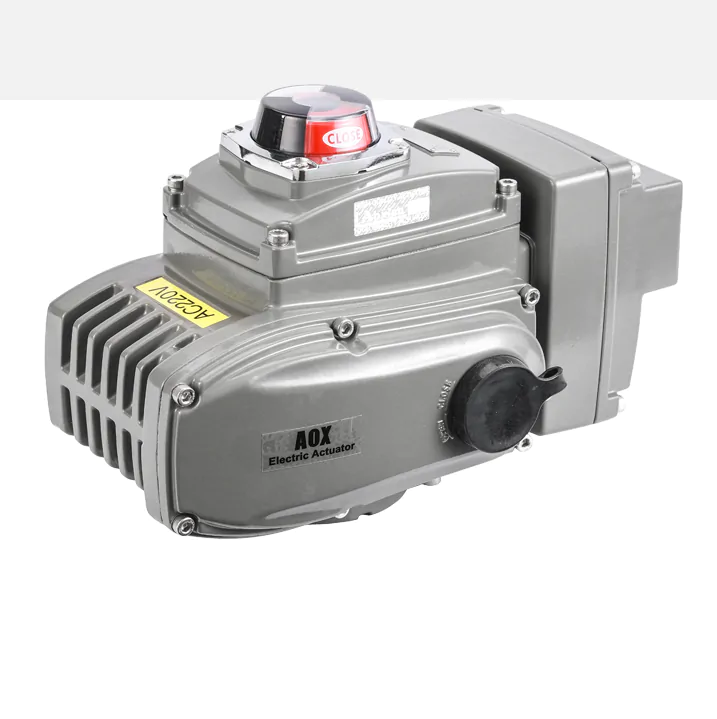

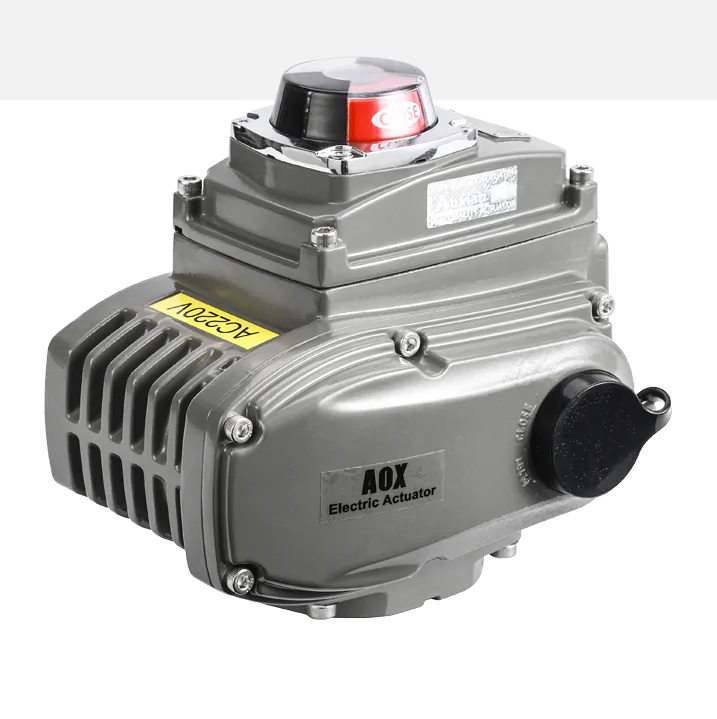

AOX-VR Series Electric Actuators
“AOX-VR” series explosion-proof electric actuator has compact structure, excellent weather resistance and seismic resistance. When the actuator is powered off, the self-locking transmission mechanism ensures that the valve position remains unchanged, and the electrical and mechanical double limits are set to prevent overtravel. The detachable driving adapter sleeve is convenient for machining, and the bottom mounting size conforms to ISO5211 standard. It is widely used in butterfly valve, ball valve, damper valve, plug valve, shutter valve and various special valves.
- Torque range: 50 ~ 600Nm
- Provide Exs || CT5 / Ex tD a21 IP67 T95 °C explosion proof enclosure
- DNVGL, CCS, SIL3, CE, ATEX
- Basic control mode:
- On-off Model
- Modulating Model
- Continuous modulating type - According to customer requirements, provide different types of control:
- On-off Type
- Modulating type (PCU) - Solutions for special applications:
- Foundation and crank arm
- Internet of Things
Sealing protection
Conforms to GB/4208-2017 standard, IP67 (standard, all connection surfaces are set with O-ring seal) protection level. Optional IP68 (double O-rings are set on all connecting surfaces).
Explosion protection level
According to GB/3836, IEC, CU-TR standard, Exd design. ATEX, CCC certification, meets all potential in explosive environments (such as oil, gas, chemical, power, metallurgy, and the emerging gas industry, etc.).
Anti-corrosion protection
Is anodized and polyester powder coated. Standard color is AOX grey (similar to RAL7039). Strong corrosion resistance, suitable for working conditions such as industrial corrosive environments (chemical, alumina plant) or marine corrosive environments (offshore/sea).
Ambient temperature
Standard: ON-OFF TYPE, MODULATING TYPE (-30℃ ~ +75℃)
Low temperature: ON-OFF TYPE, MODULATING TYPE (-60℃ ~ +50℃)
| Model  | Output torque | Operating Time 90° | Max Shaft Size | Power | Rated current（A） | Weight | |
|  | N·M | (  90°) | (mm)                                                                                         | (W) | 220VAC/1ph | (kg) | |
| AOX-VR-005 | 50 | 30 | Max Φ16 | Max 17×17 | 10 | 0.23 | 4.7 |
| AOX-VR-008 | 80 | 60 | Max Φ16 | Max 17×17 | 10 | 0.23 | 4.7 |
| AOX-VR-010 | 100 | 30 | Max Φ16 | Max 17×17 | 15 | 0.40 | 5.5 |
| AOX-VR-015 | 150 | 60 | Max Φ16 | Max 17×17 | 15 | 0.40 | 5.5 |
| AOX-VR-020 | 200 | 30 | Max Φ30 | Max 27×27 | 60 | 0.48 | 15 |
| AOX-VR-030 | 300 | 30 | Max Φ30 | Max 27×27 | 60 | 0.52 | 15 |
| AOX-VR-040 | 400 | 30 | Max Φ30 | Max 27×27 | 60 | 0.59 | 15 |
| AOX-VR-060 | 600 | 60 | Max Φ30 | Max 27×27 | 60 | 0.52 | 15 |
| General specifications | |
| Torque range | ·Direct installation: 50-600Nm     ·Larger or quick opening optional AOX-M series |
| Shell material | Die cast aluminum |
| Position indicator | Even in case of power failure, the valve position dial can display continuous position changes |
| Tightness | |
| External corrosion protection | Paint system |
| ·Polyester powder coating conforms to GBT 18593-2001 standard    　·Optional protection for highly corrosive condition | |
| ·Screws are all stainless steel screws | |
| Travel/limit | |
| Trave | 90° standard (90°~270° optional) |
| Limit switch | 2×Open/Close, SPDT, 250V AC 10A |
| Auxiliary limit switch | 2×Open/Close, SPDT, 250V AC 10A |
| Torque switch | On/Off. SPDT, 250V AC 10A |
| Mechanical limit | 2 external adjusting bolts |
| Mechanical specifications | |
| Self locking device | Worm gear and worm mechanism provide self-locking |
| Output flange | The bottom installation dimension shall conform to ISO5211 international standard |
| Output shaft | The output shaft drive sleeve can be disassembled and machined for adaptability. Can be installed vertically or horizontally |
| Seismic performance | X YZ10g, 0.2~34 Hz, 30 minutes |
| lubrication | Aluminum base grease (EP type) |
| Manual operation | Mechanical clutch mechanism |
| Handwheel | Reliable, labor-saving, small size |
| Electrical specifications | |
| Motor power supply | 110/220V AC 1Phase,380/440V AC 3Phase,50/60Hz,土10% |
| Control power | 110/220V AC 1Phase,50/60 Hz,土10% |
| Electric machinery | Squirrel cage asynchronous motor, insulation class H |
| Failsafe/Operating Temperature | Built in thermal protection, open/close 120 ℃± 5 ℃ |
| Heater | 30W(220V AC) Anti condensation |
| Wiring hole | 2xM20*1.5 |
| EC Directive | |
| Conformity with EC Directives | The actuator meets the following requirements |
| ·014/30/EU Electromagnetic Compatibility　        ·2014/35/EU Low Voltage | |
| The following harmonized standards | |
| ·General emission standard for industrial environment EN 61000-6-44  ·Rotating electrical machine standard EN 60034-1 | |
| ·General anti-interference standard for industrial environment EN 61000-6-4 | |
