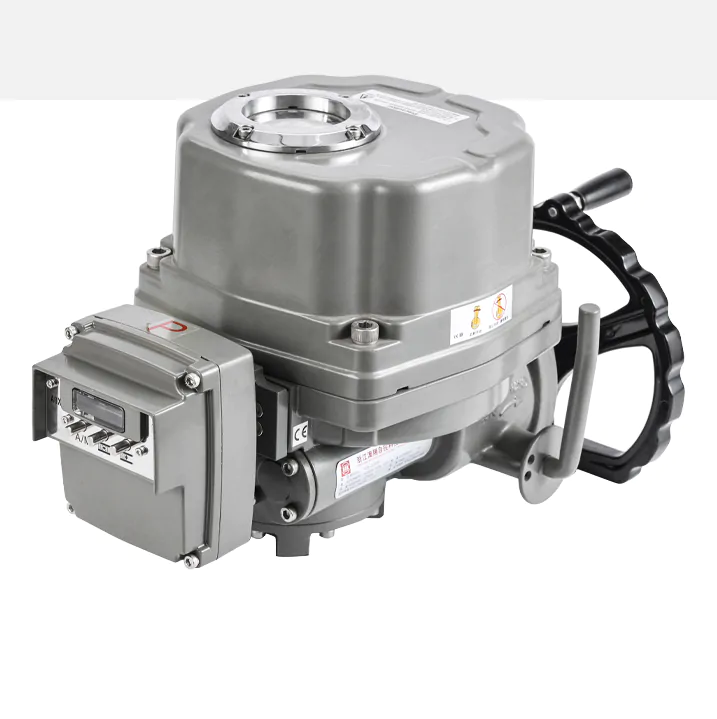

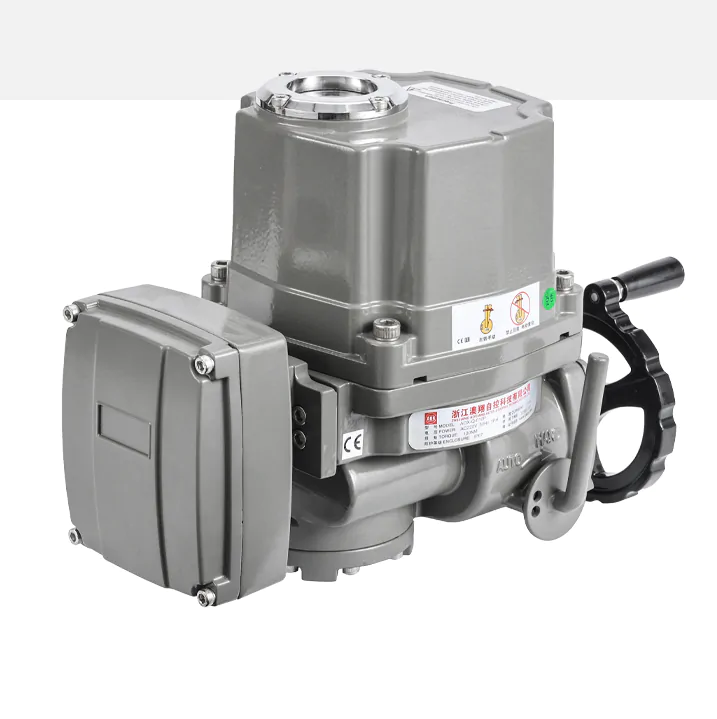

AOX-Q Series Electric Actuators
“AOX-Q” series has compact structure, manual and automatic clutch, excellent weather resistance and seismic resistance. When the actuator is powered off, the self-locking transmission mechanism keeps the valve position unchanged, and the electrical and mechanical double limit prevents over travel. The removable drive adapter sleeve facilitates processing, and the bottom installation size complies with ISO5211 standard. It is commonly used for butterfly valves, ball valves, dampers, flapper valves, plug valves, louver valves, multi-way valves and various special valves.
- Torque range: 50 ~ 6000Nm
- Ex d || CT5 Gb/Ex tD a21 IP67T95°C explosion-proof housing available (ATEX type optional)
- DNVGL, CCS, ATEX, SIL3, CU-TR, CE, CCC
- Basic control mode:
- On-off Model
- Modulating Model
- Continuous modeling model - Different control types are available according to customer requirements:
- On-off Type
- Modulating type (PCU)

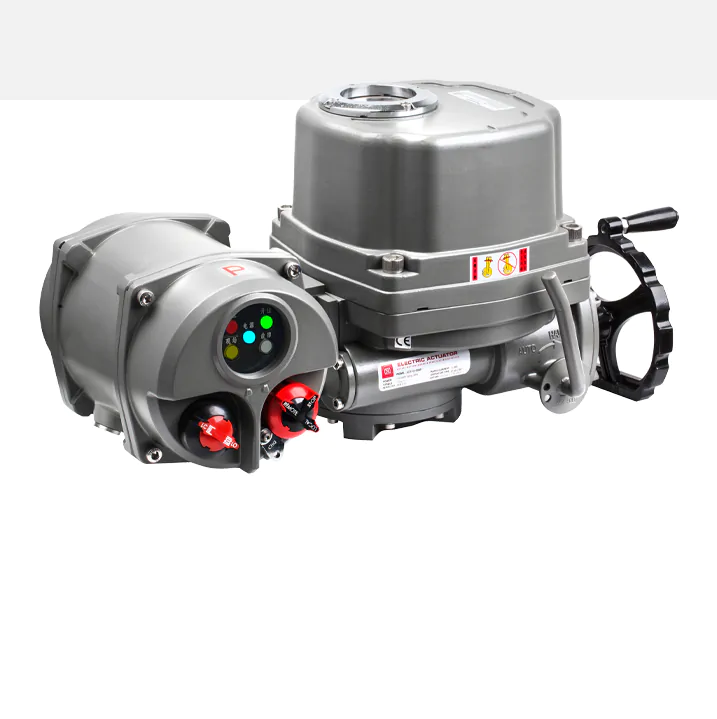

- Light indicating type (LCU)
- Non-invasive integrated type (SRCU)
- Intelligent type (ICU)
- Fieldbus type (ICU+Single/Double Card+Fieldbus Name) - Solutions for special applications:
- Split type
- Foundation and crank arm
- Power off reset
- Internet of Things
Sealing protection
Conforms to GB/4208-2017 standard, IP67 (standard, all connection surfaces are set with O-ring seal) protection level, available Optional IP68 (double O-rings are set on all connecting surfaces).
Explosion protection level
According to GB/3836, IEC, CU-TR standard, Exd design. ATEX, CCC certification, meet all potential in explosive environments (such as oil, gas, chemical, power, metallurgy and the emerging gas industry, etc.).
Anti-corrosion protection
Is anodized and polyester powder coated, standard color is AOX grey (similar to RAL7039), corrosion resistant Strong corrosion resistance, suitable for working conditions such as industrial corrosive environment (chemical, alumina plant) or marine corrosive environment (offshore/sea).
Ambient temperature
Standard:
ON-OFF TYPE, MODULATING TYPE (-30℃~+75℃)
INTELLIGENT TYPE, NON-INVASIVE INTEGRATED TYPE (-25℃~+70℃)
LIGHT INDICATING TYPE (-25℃~+70℃)
| Model | Output Torque (N·m) | 90° Action Time @ 50Hz (s) | Flange ISO (5211) | Motor Power (W) | Rated Current (A) @ 220V, 50Hz | Handwheel Turns (N) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| AOX-Q-005 | 50 | 22 | F07 | 20 | 0.49 | 10 | 7.5 |
| AOX-Q-008 | 80 | 22 | F07 | 20 | 0.51 | 10 | 7.5 |
| AOX-Q-010 | 100 | 22 | F07 | 20 | 0.54 | 10 | 7.5 |
| AOX-Q-015 | 150 | 25 | F07 / F10 | 40 | 0.71 | 11 | 17.3 |
| AOX-Q-020 | 200 | 25 | F07 / F10 | 40 | 0.86 | 11 | 17.3 |
| AOX-Q-030 | 300 | 31 | F10 / F12 | 90 | 1.39 | 13.5 | 22 |
| AOX-Q-050 | 500 | 31 | F10 / F12 | 120 | 1.87 | 13.5 | 23 |
| AOX-Q-060 | 600 | 31 | F10 / F12 | 120 | 1.95 | 13.5 | 23 |
| AOX-Q-120 | 1200 | 37 | F12 / F14 | 120 | 1.98 | 16.5 | 29 |
| AOX-Q-150 | 1500 | 93 | F14 / F16 / F25 | 180 | 1.74 | 49.5 | 83 |
| AOX-Q-200 | 2000 | 93 | F14 / F16 / F25 | 180 | 1.76 | 49.5 | 83 |
| AOX-Q-300 | 3000 | 112 | F14 / F16 / F25 | 180 | 1.82 | 82.5 | 83 |
| AOX-Q-400 | 4000 | 185 | F14 / F16 / F25 | 180 | 1.75 | 82.5 | 83 |
| AOX-Q-500 | 5000 | 185 | F14 / F16 / F25 | 180 | 1.75 | 82.5 | 83 |
| AOX-Q-600 | 6000 | 185 | F14 / F16 / F25 | 180 | 2.31 | 82.5 | 83 |
| General specifications | |
| Torque range | ·Direct installation:50-1200Nm       　·With reducer:1500~6000Nm         ·Larger or quick opening optional AOX-M series |
| Shell material | Hard aluminum alloy |
| Position indicator | Even in case of power failure, the valve position dial can display continuous position changes |
| Tightness | |
| External corrosion protection | Paint system |
| ·Polyester powder coating conforms to GBT 18593-2001 standard    　·Optional protection for highly corrosive condition | |
| ·Screws are all stainless steel screws | |
| Travel/limit | |
| Trave | 90°standard (90°~270° Optional) |
| Limit switch | 2×Open/Close, SPDT, 250V AC 10A |
| Auxiliary limit switch | 2×Open/Close, SPDT, 250V AC 10A |
| Torque switch | On/Off,SPDT, 250V AC 10A(except AOX-Q-005/008/010) |
| Mechanical limit | 2 External adjusting bolts |
| Mechanical specifications | |
| Self locking device | Worm gear and worm mechanism provide self-locking |
| Output flange | The bottom installation dimension shall conform to ISO5211 international standard |
| Output shaft | The output shaft drive sleeve can be disassembled and machined for adaptability. Can be installed vertically or horizontally |
| Seismic performance | X YZ10g, 0.2~34 Hz, 30 minutes |
| lubrication | Aluminum base grease (EP type) |

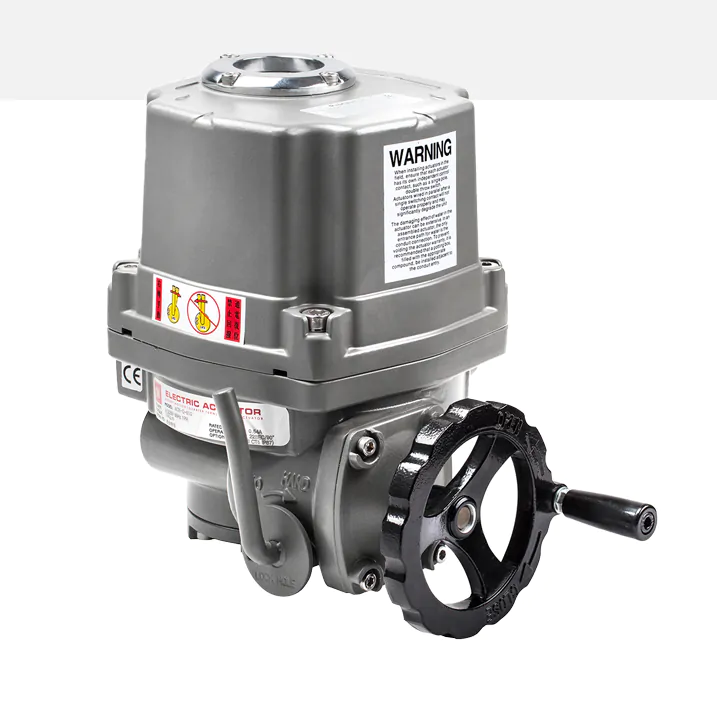

| Manual operation | Mechanical handle (Optional handwheel) |
| Handwheel | Reliable, labor-saving, small size |
| Electrical specifications | |
| Motor power supply | 110/220V AC 1Phase,380/440V AC 3Phase,50/60Hz,土10% |
| Control power | 110/220V AC 1Phase,50/60 Hz,土10% |
| Electric machinery | Squirrel cage asynchronous motor, insulation class H |
| Failsafe/Operating Temperature | Built in thermal protection, open/close 120 ℃± 5 ℃ |
| Heater | 30W(220V ACÂ Anti condensation) Optional |
| Cable entry | 2x NPT 3/4″ standard (three connection holes are optional) |
| EC Directive | |
| Conformity with EC Directives | The actuator meets the following requirements |
| ·2014/30/EU Electromagnetic Compatibility　        ·2014/35/EU Low Voltage | |
| The following harmonized standards | |
| ·General emission standard for industrial environment EN 61000-6-44  ·Rotating electrical machine standard EN 60034-1 | |
| ·General anti-interference standard for industrial environment EN 61000-6-4 | |
